Direct cast billet for long steel products

Our steel billets have a square cross-section and are suitable for steel reinforcement, structural, low-carbon, and drawing applications.

Our steel is produced through the basic oxygen steelmaking (BOS) process and is then refined in a ladle arc furnace and vacuum degasser facilities

These processes control the steel temperatures and chemistries extremely tightly, ensuring our wide range of steel grades meets the most demanding customer requirements.

Our billets are continuously cast through an 8-strand billet caster — sequence casting is used and the steel is fully shrouded between fine ladle and tundish to prevent reoxidation.

Quality Assurance

Our long and successful history in steelmaking means you can be assured of re¢erying top quality billets for your production lines.

Technical support from our specialists

Our team of experienced metallurgists provides dedicated technical support to our customers fa ensure our products meet your exacting requirements

Billet identification

Our billets are each hard stamped with a 5-digit cast number, ensuring traceability. If the hard stamp is illegible or missing, a paint stencil can be used as an alternative.

Dimensions:

Dimensions Measurements(mm)
Width and Thickness 140 x 140
Width and Thickness 180 x 180



Tolerance

Section overall

Measure section mid-face S1 andS2 (preferred method)

Sections mm
140 mm -3/+5
180 mm -2/+6




Tolerance Measurement (all section size)

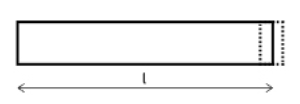

Length* +/- 100mm
Straightness** 10 mm/m or 100 mm max on overall length


Notes:

*Shorts allowance up to 5% of billets down to customers' minimum length.
** Measure gap from a flat surface or wire  stretched  end-to-end


Tolerance Measurement (all section size)

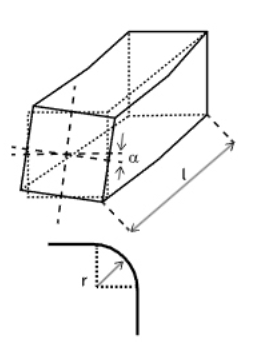

Twist 3° Max on overall length
Flash/flame cutting  x= 10 mm max
Corner radius  r=4 mm
Quantity Nominal order in 280 metrics tonne multiples
Overall order quantity +/- 10%



Screen Shot 2023-11-19 at 4.28.07 PM



Rhomboidity

Measure diagonal D1 and D2
Diagonal Difference  D1-D2

Section Measurement
140 mm 10 mm max
180 mm 14 mm max
All 3° Max




Screen Shot 2023-11-19 at 4.27.44 PM

Screen Shot 2023-11-19 at 4.27.49 PM

Screen Shot 2023-11-19 at 4.28.01 PM

Documentation

Inspection certifications will be supplied for products being rolled in accordance with EN 10204, with the following element being routinely analysed at cast level:

Element Number of reported digits after decimal point
C, Si, Mn 2
P, S, Al(t), V, Ti, Nb, Sn, Mo, Co, Ca, Cu, Ni, Cr, N 3
B 4



Bespoke billets for your rolling needs

Our billets can be tailored to best meet the attributes of your products and help you meet the appropriate national and international standards. Please contact us to discuss your requirements

Applications Standard
Structural steel Suitable for rolling to EN 10025 e.g. S235, S275, S355
Structural steel Sulabfe for raking to ASTM e.g. A36, A992, A572 gr 5O

Plain and deformed reinforcement bar

 Various
Low carbon wire rod Various
